Send InquiryPP Concrete Fiber Yarn Extrusion Plant
Price 10000 INR/ Unit
MOQ : 1 Unit
PP Concrete Fiber Yarn Extrusion Plant Specification
- Source
- ELECTRICALS PANEL
- Automation Grade
- NA
- Model No
- M
- Installation Guideline
- NA
- Production Capacity
- 200 Kg
- Motor Power
- NA Decibel-Watt (dBW)
- Speed
- NA Km/s
- Temperature Range
- NA Fahrenheit (oF)
- Usage & Applications
- INDUSTRIAL USGES ROPE
- Frequency
- NA Hertz (HZ)
- Efficiency (%)
- NA
- Plastic Processed
- NA
- Driven Type
- NA
- Accessories
- NA
- Country Of Origin
- INDIA
- Type
- Automatic Model
- Material
- Mild Steel and Other Material
- Computerized
- No
- Automatic Grade
- Semi-Automatic
- Control System
- Frequency Speed Control
- Drive Type
- Electric
- Voltage
- 250 Volt (v)
- Power
- NA Volt (v)
- Weight (kg)
- 3 Tonne
- Dimension (L*W*H)
- NA Inch (in)
- Color
- White Blue
- Warranty
- 5 Years
- Capacity
- NA Kg/hr
- Features
- NA
- Machine Type
- NA
- Power Consumption
- NA Volt (V)
- Surface Finish
- Coated, Painted
PP Concrete Fiber Yarn Extrusion Plant Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- ALL INDIA PORT
- Payment Terms
- Cash in Advance (CID), Cheque, Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash Advance (CA), Letter of Credit at Sight (Sight L/C)
- Supply Ability
- 50 Units Per Month
- Delivery Time
- 10 Days
- Packaging Details
- BABBLE PLASTIC WARRING PACKING
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO GOVT. APPROVED CERTIFIED
About PP Concrete Fiber Yarn Extrusion Plant

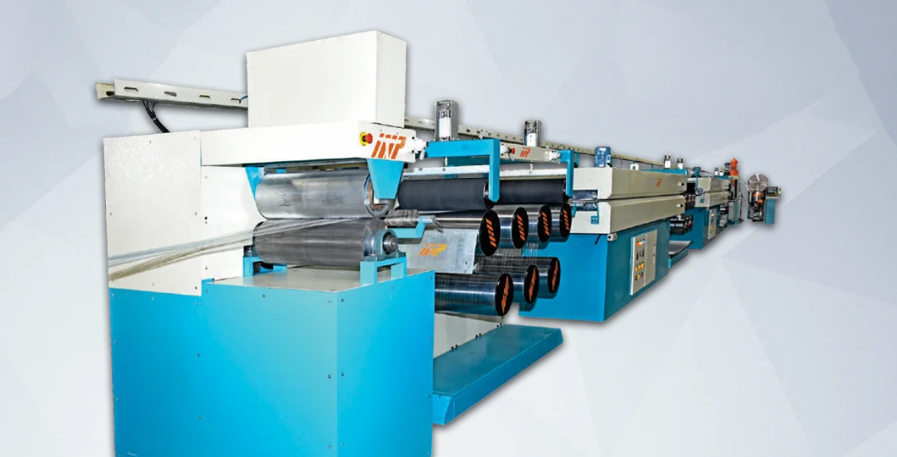

PP Concrete Fiber Yarn Extrusion Plant
PP Concrete Fiber Yarn Extrusion Plant is a semi-automatic extrusion plant that is designed to produce high-quality concrete fiber yarns. The plant is made of mild steel and operates at a voltage of 250V with a frequency speed control system. The extrusion plant is driven by an electric motor and has no computerized system. The PP Concrete Fiber Yarn Extrusion Plant is an ideal choice for businesses looking to produce concrete fiber yarns in large quantities. The plant is easy to operate and requires minimal maintenance. It is designed to produce durable and high-quality concrete fiber yarns that can withstand harsh weather conditions. The extrusion plant can be customized to meet specific business requirements. It is compatible with a variety of materials and can produce fiber yarns of different sizes and shapes. The plant is also energy-efficient, which makes it a cost-effective option for businesses looking to reduce their energy consumption.
FAQs of PP Concrete Fiber Yarn Extrusion Plant:
Q: What is the warranty period for the PP Concrete Fiber Yarn Extrusion Plant?
A: The plant comes with a 5-year warranty period.Q: What is the maximum voltage requirement for the plant?
A: The maximum voltage requirement for the plant is 250V.Q: Is the plant computerized?
A: No, the plant does not have a computerized system.Q: What is the material used to manufacture the plant?
A: The plant is made of mild steel.Q: Can the plant produce fiber yarns of different sizes and shapes?
A: Yes, the plant can be customized to produce fiber yarns of different sizes and shapes.
Technical Specification
| MODEL | MTP/CF 75 | MTP/CF/GF 80 | MTP/CF/GF 90 | MTP/CF/GF 100 | MTP/CF/GF 110 |
|---|---|---|---|---|---|
| Production Output (Kg./Hr.) | 125 | 250 | 300 | 400 | 500 |
| Max Line Speed (MPM) | 150 | 180 | 180 | 180 | 180 |
| No. of Godet Rollers | 7/7/7 | 7/7/7 | 7/7/7 | 7/7/7 | 7/7/7 |
| Power (Kw)* | 186.4 | 273.17 | 323.15 | 419 | 435 |
| Weight (Approx.) Kgs. | 14200 | 22000 | 25000 | 27000 | 30000 |
| Dimension (LxWxH in Mtr) | 26.3 x 3.5 x 3.2 | 30 x 4.2 x 3.9 | 31.1 x 4.2 x 3.9 | 31.1 x 4.2 x 3.9 | 33 x 4.2 x 3.9 |
NOTE: "PRODUCTION CALCULATED WITH ROW MATERIAL HAVING MFI 3 AND ABOVE "POWER LOAD CALCULATED WITH MELT PUMP
Key Features :
User friendly touch screen display with separate desk.
All parameters and reading will be shown on display.
Denier setting can be done from the display screen.
Precise denier output will be shown in display.
Recipe based operating system for easy machine operating.
Pneumatically operated transparent safety fence guard for godet rollers.
Emergency full length foot switches parallel to the godet length for both godets.
Energy calculation for production and power cost on display screen.
3 zone pressure transmitters for precise control & denier accuracy.
Vector speed control system for more stretching accuracy.
Inter-locking features to avoid the damages of machine components.
Shift wise, daily, weekly and monthly production reports.
AC drive fault alarm indication on display.
Wi-Fi or LAN connectivity.
Remote monitoring/remote maintenance.
User access with password protection.
Extra Features for Smooth and Easy Start.
The Standard Extrudes Consists :
Hopper loader.
Valve type screen changer with back flushing arrangement.
Melt pump with pressure transmitter device.
Concrete Fibre die & head.
Quenching tank with up-down arrangement.
Godet-I with 7 Nos, pulleys and pneumatically operated press roller.
Hot Air Oven With double Blower.
Godet-II with 7 Nos. Pulleys and pneumatically Operated press rollers.
Godet-III with 7 Nos. Pulleys and pneumatically Operated press rollers.
Broken yarn suction unit.
Electric control panel with multi-function energy meter and programmable logic control system.
Operating desk with color resistive touch screen HMI.
Embossing unit with PLC controller.
