Send InquiryBobbin Winder Machine
Price 10000 INR/ Unit
MOQ : 1 Unit
Bobbin Winder Machine Specification
- Torque
- NA KN-w
- Shape
- RECTANGLE
- Diameter
- NA Meter (m)
- Phase
- 3 PHASE
- Product Type
- Semi Automatic
- General Use
- Industrial
- Material
- Type
- Other
- Capacity
- 7 Kg
- Weight (kg)
- 1000 Kilograms (kg)
- Computerized
- No
- Automatic
- No
- Touch Screen
- No
- Control System
- Manual
- Surface Treatment
- Manual Button
- QC System
- NA
- Tolerance
- NA Meter
- Drawing
- 2D
- Voltage
- NA Horsepower (HP)
- Dimension (L*W*H)
- NA Meter (m)
- Feature
- High Efficiency, ECO Friendly
- Color
- GRAY WHITE
- Warranty
- 1 YEAR
Bobbin Winder Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- All India Port
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Supply Ability
- 50 Units Per Month
- Delivery Time
- 1 Months
- Packaging Details
- Plastic Babble Packing
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- Private and Government Approved
About Bobbin Winder Machine

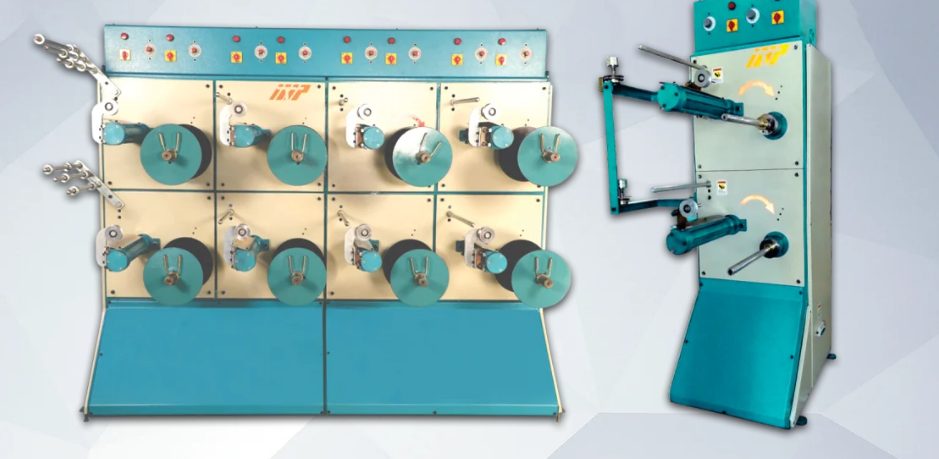

Bobbin Winder Machine,
Technical Specification
| MODEL | MTP / BW |
|---|---|
| NO. OF POSITIONS | 2 to 16 Positions (Even) |
| DENIER RANGE | Max. 45,000 |
| WINDING | On flange Bobbin |
| MOTOR | 0.74 KW Torque Motor |
| WINDING SPEED MAX. | 150 MPM Max. |
| PACKAGE SIZE | 250mm Dia X 300mm Traverse* |
| TAKE UP CAPACITY | 7 kg. |
| DIMENSION (LxWxH) | 6'10" X 3'6" X 6'0" (8 Position) |
Key Features :
Nominal Power Consumption.
Timing Belt Drive.
Low Maintenance Cost.
Electrical control for torque Adjustment.
Each Station has individual Motor & Traverse.
Note: Bobbin Winder for PP Tape, Monofilament & Danline.
Bobbin Re-winder for Cotton, Jute, Sisal, Manila, POY, Polyester & all other natural synthetic fibre yarns.
