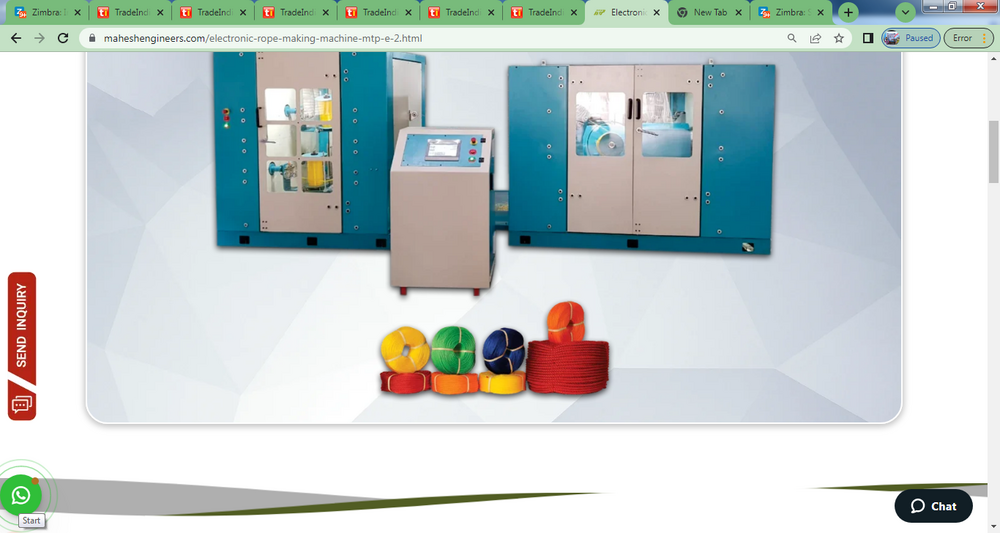

Electronic Rope Making Machine

10000 INR/Unit

Get a Price/Quote

Product Details:

Torque NA Ibf-ft
Shape SQUARE
Diameter NA Inch (in)
Phase 3 PHASE
Product Type Semi Automatic
General Use Industrial
Material Stainless Steel Alloy
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electronic Rope Making Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 10000 INR/Unit

Electronic Rope Making Machine Product Specifications

Tolerance NA Meter
Torque NA Ibf-ft
Voltage NA Volt (v)
Computerized No
Material Stainless Steel Alloy
Warranty 5 Years
QC System NA
Color GRAY WHITE
Weight (kg) 1 Tonne
Dimension (L*W*H) NA Inch (in)
Phase 3 PHASE
Drawing 2D
Diameter NA Inch (in)
Shape SQUARE
General Use Industrial
Surface Treatment Polishing
Type Other
Capacity 12 Kg
Product Type Semi Automatic
Control System Frequency Speed Control
Feature High Efficiency
Automatic Yes
Touch Screen Yes

Electronic Rope Making Machine Trade Information

FOB Port ALL INDIA PORT
Payment Terms Cash in Advance (CID), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Letter of Credit at Sight (Sight L/C), Cheque
Supply Ability 50 Unit Per Month
Delivery Time 10 Days
Packaging Details BABBLE PACKING
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications GOVT APPROVED

Product Description

The Electronic Rope Making Machine is an industrial-grade machine that is made of high-quality stainless steel alloy and polished to perfection. With its high efficiency, this machine can produce ropes of various lengths and thicknesses at an impressive speed. It is equipped with a frequency speed control system that provides precise control over the speed of the machine. Additionally, the machine is automatic, which means that it can work continuously without any human intervention. This machine is ideal for businesses that require high-quality ropes for their products. With a warranty of 5 years, you can be assured that this machine is built to last.

FAQs of Electronic Rope Making Machine:

Q: Is this machine computerized?

A: No, this machine is not computerized.

Q: What is the surface treatment of this machine?

A: The surface of this machine is polished.

Q: What is the general use of this machine?

A: This machine is designed for industrial use.

Q: What type of control system does this machine have?

A: This machine has a frequency speed control system.

Q: Is this machine automatic?

A: Yes, this machine is automatic and can work continuously without any human intervention.

Technical Specification

MODEL	MTP / E-2
ROPE RANGE	2mm to 6mm
STRAND FLYER RPM	Max. 3000
ROPE FLYER RPM	Max. 1500
ROPE LAY	Z
TWIST PER MINUTE	Twice The Flyer Speed
TWIST RANGE	40 to 150 TPM
TWIST IN STRAND	Adjustable
PAY OFF PACKAGE SIZE	250mm Dia. X 300 mm Tra. (3 Packages per Ply) 400mm Dia. X 300mm Tra. (2 packages per Ply)
TAKE UP CAPACITY	12 Kgs. (Approx)

Key Features :

User friendly touch screen display with PLC control.

All parameters will be shown on display.

RPM/TPM & twist factor adjustment by display.

Weight & Meter set point.

Denier & twisting calculator in display.

Door location warning.

Machine lubrication warning.

A.C. drive fault alarm indication.

100 program memory storage facility.

Daily, weekly & monthly report system. (Direct save in excel format)

Direct Coiling Head

Wi-Fi connectivity system for computer.

Optional Features :

Rope Lay S & Z.

Final take up on cheese package formation. Option : 200 mm x 200 mm, 250 mm x 250 mm, 300 mm x 300mm, 350 mm x 350 mm

Electrical Take up system.

Pneumatic Spindle for Package Removal System.

Production Capacity ( On 100% Efficiency )

ROPE SIZE	PRODUCTION (KG/HR.)	TPM	RPM (MAX)	GRM/MTR
2 mm	4.00 kg	90.00	1500	2.00
3 mm	7.80 kg	85.00	1350	4.09
4 mm	15.49 kg	67.57	1200	7.27
5 mm	25.22 kg	54.05	1000	11.36
6 mm	39.23 kg	45.04	900	16.36

AVAILABLE MODELS	MTP/E-2-39	MTP/E-2-412
Motor Capacity	13 KW	15 KW
Number of Strand	3 Ply	4 Ply
Number of pay off package	3 x 3 = 9	3 x 4 = 12
Dimension (L x W x H)	16'6"x4'9"x5'9"	16'6"x4'9"x5'9"
Weight (Approx.)	3400Kgs.	3700Kgs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rope Making Machine' category

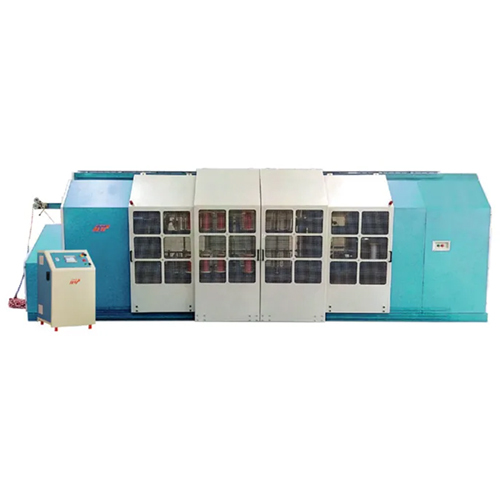

Endless Rope Making Manchine Price : 10000 INR/Unit Minimum Order Quantity : 1 Capacity : 100 Kg Control System : Frequency Speed Control Product Type : Semi Automatic Automatic : Yes Feature : High Efficiency, Low Noise Touch Screen : Yes Drawing : 2D Diameter : NA Meter (m) Phase : 3 PHASE Shape : RECTANGLE General Use : Industrial Type : Other Surface Treatment : Polishing Warranty : 5 Years Material : Stainless Steel Alloy Color : GRAY WHITE QC System : NA Dimension (L*W*H) : 21.6X8.5X8.10 Meter (m) Weight (kg) : 1600 Kilograms (kg) Tolerance : NA Micrometers (um) Torque : NA kgfmm Computerized : No Voltage : 24 Horsepower (HP)

Send Inquiry

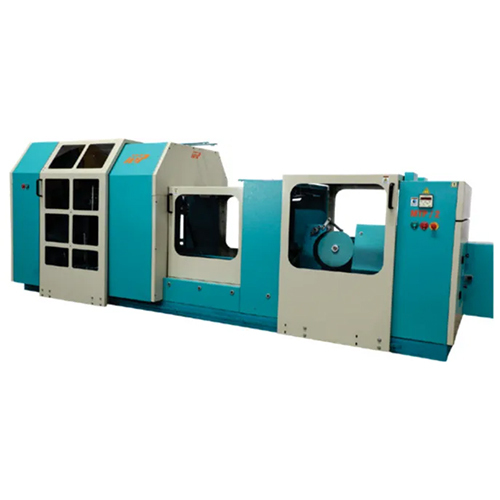

Mechanical Rope Making Machine Price : 10000 INR/Unit Minimum Order Quantity : 1 Capacity : 12 Kg Control System : Frequency Speed Control Product Type : SEMI AUTOMATIC Automatic : Yes Feature : High Efficiency, ECO Friendly Touch Screen : No Drawing : 2D Diameter : NA Meter (m) Phase : 3 PHASE Shape : SQUARE General Use : Industrial Type : Other Surface Treatment : Polishing Warranty : 5 Years Material : Stainless Steel Alloy Color : GRAY WHITE QC System : NA Dimension (L*W*H) : NA Meter (m) Weight (kg) : 1200 Kilograms (kg) Tolerance : NA Gauge Torque : NA KNw Computerized : No Voltage : NA Volt (v)
