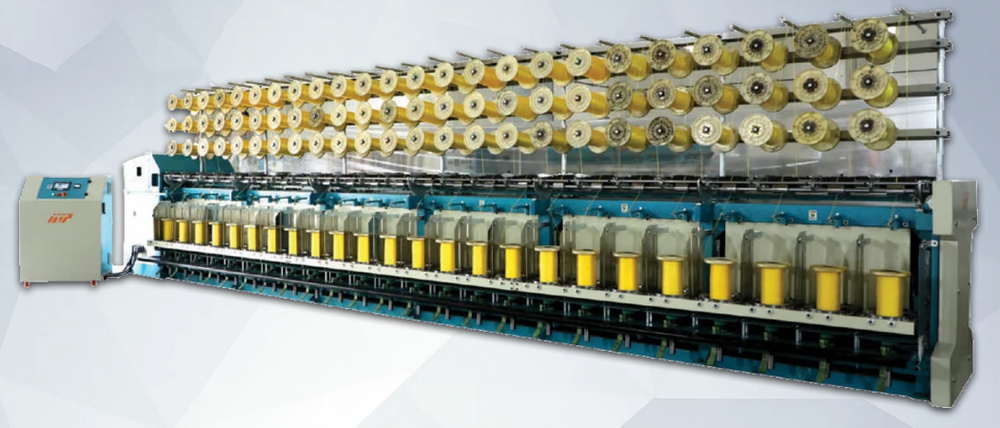

Offline Ring Twister

10000 INR/Unit

Get a Price/Quote

Product Details:

Phase 3 PHASE
Shape RECTANGLE
Torque NA Ibs-in
Diameter NA Inch (in)
Product Type Automatic
General Use Industrial
Material Stainless Steel Alloy
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Offline Ring Twister Price And Quantity

Minimum Order Quantity 1 Unit
Price 10000 INR/Unit

Offline Ring Twister Product Specifications

Drawing 2D
Voltage 24 Horsepower (HP)
Torque NA Ibs-in
General Use Industrial
Surface Treatment Polishing
Control System Frequency Speed Control
Phase 3 PHASE
Feature High Efficiency, ECO Friendly, Low Noise
Computerized Yes
Product Type Automatic
Automatic Yes
Material Stainless Steel Alloy
Dimension (L*W*H) NA Inch (in)
Touch Screen Yes
Weight (kg) 30000 Kilograms (kg)
Color GRAY WHITE
Tolerance NA Micrometers (um)
Capacity 1000 Kg
QC System NA
Warranty 5 Years
Type Other
Diameter NA Inch (in)
Shape RECTANGLE

Offline Ring Twister Trade Information

FOB Port All India Port
Payment Terms Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Cash Advance (CA), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
Supply Ability 50 Unit Per Month
Delivery Time 10 Days
Packaging Details Babble Packing
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications Government and Private Quality research Certified

Product Description

The Offline Ring Twister is a high efficiency machine that is perfect for industrial use. Made of durable stainless steel alloy and polished for a sleek finish, this machine is designed to last for years. With automatic operation and a frequency speed control system, the Offline Ring Twister is a reliable and efficient addition to any manufacturing facility. This machine is not computerized, making it easy to operate and maintain. The Offline Ring Twister comes with a 5-year warranty, providing peace of mind for users.

FAQs of Offline Ring Twister:

Q: What is the material of the Offline Ring Twister?

A: The Offline Ring Twister is made of stainless steel alloy.

Q: Is the Offline Ring Twister computerized?

A: No, the Offline Ring Twister is not computerized.

Q: What is the warranty for the Offline Ring Twister?

A: The Offline Ring Twister comes with a 5-year warranty.

Q: What is the general use for the Offline Ring Twister?

A: The Offline Ring Twister is designed for industrial use.

Q: What type of control system does the Offline Ring Twister have?

A: The Offline Ring Twister has a frequency speed control system.

Technical Specification

NO OF SPINDLES	48 Spindles
RING AND GUAGES	10" X 1.5" Ring And 14" Guage
RING HOLDER	Aluminium Holder With Individual Oil Pot Provided
TWIST RANGE	20 Tpm To 80 Tpm
DIRECTION OF TWIST	S&Z Direction Change Over Switch Provided
SPINDLE & BOLSTER	Heavy Duty 24mm Dia Spindle With Bolsters of Dia. 24mm
LIFT	12" Lift With CI Body, 4 Bearing Slide System Driven By 2 Hp Gear Motor
DELIVERY ROLLERS	75mm Dia Twin Roller With Hard Chrome And Dual Bearing System
TOP ROLLERS	Rubber Coated Top Rollers With Lifting Handle
ROLLER STAND	4 Ball Bearing Stand With 2 Bottom Rollers And 1 Extra Width Rollers
TRAVERSE	Ceramic Mounted Flat Bars For Thread Guide With 50mm Traverse By Worm And Wormwheel Gear System.
DRIVING PULLEY	10" Dia Alluminium Pulley For 2 Spindle Drive System
TENSION PULLEY	78mm Jockey Pulley With Tension Spring System, 2 Spindle Drive
CREEL	Main Creel Mounted on Top of The Machine and Pipe Provided on Top Row For Proper Yarn Tension
SEPERATOR	S.S. Sheet Provided For Each Spindle And Easily Removable
LAPPET	Tilting Type CI Body With Ss Hook Fitted.
ELECTRICAL	Spindle Driven By 20hp Motor. 2nos 3hp Motor & Reduction Gear Box For Delivery Rollers. 1 Nos 2hp Motor With Helical Gear Box For Lifting. All Motors Synchronised With Plc Control Panel Board. TPM, RPM, Reverse & Forward Switch System Provided In Touch Screen Display Panel. All Parameters Settings By HMI Display. Overload Relay, Amps Mit, Volts Mit, Hour Mit Provided In Panel. Motors-rotomotive/C & G Make. Gear Box-bonfiglioli Make.
MACHINE SIZE	32ft. Length X 6ft. Width x 8ft. Height.
SPINDLE SPEED	2800 RPM (Max.)
RING SIZE	As per Customer Requirement

Key Features :

High Speed Ring Twister Machine For Best Yarn Quality With High Productivity.

Innovative Structure Design With Ready To Use. No Assembling Is Required.

Tpm Setting By Hmi Display, No Need For Any Mechanical Changes.

S & Z Twist Direction By Change Over Switch.

Easy To Operate.

Less Noisy, Power Cost Saving.

Zero Vibration And Zero Maintainance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Twister Machine' category

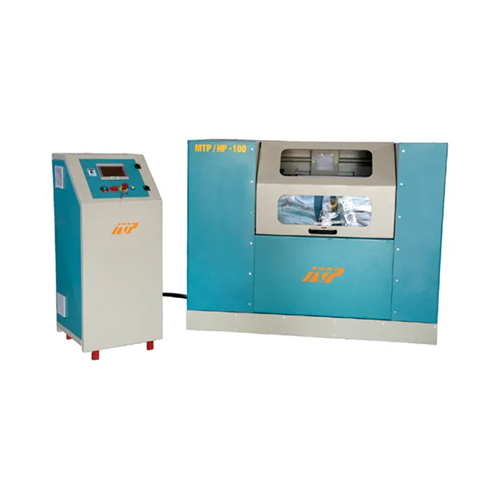

MTP-HP-100 Inflow Twister Machine Price : 10000 INR/Unit Minimum Order Quantity : 1 Feature : High Efficiency, Lower Energy Consumption, Stable Operation Computerized : No Control System : Frequency Speed Control General Use : Industrial Surface Treatment : Polishing Material : Stainless Steel Alloy Automatic : Yes Warranty : 5 Years Product Type : Semi Automatic Phase : 3 PHASE Torque : NA Ibfft Voltage : 10 Horsepower (HP) Drawing : 2D Color : GRAY WHITE Tolerance : NA Meter Weight (kg) : 1525 Kilograms (kg) Dimension (L*W*H) : 70X40X46 Inch (in) Capacity : 10 Kg Diameter : NA Meter (m) Shape : SQUARE Type : Other QC System : NA Touch Screen : Yes

Send Inquiry

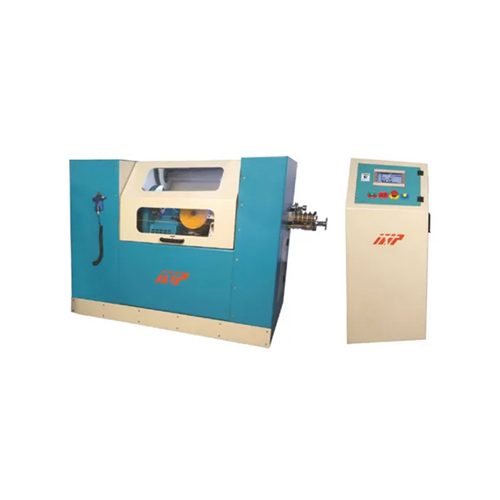

MTP-IE-100 Inflow Twister Machine Price : 10000 INR/Unit Minimum Order Quantity : 1 Feature : High Efficiency, ECO Friendly, Low Noise Computerized : No Control System : Frequency Speed Control General Use : Industrial Surface Treatment : Polishing Material : Stainless Steel Alloy Automatic : Yes Warranty : 5 Years Product Type : Automatic Phase : 3 PHASE Torque : NA KNw Voltage : 10 Horsepower (HP) Drawing : 2D Color : GRAY WHITE Tolerance : NA Meter Weight (kg) : 1000 Kilograms (kg) Dimension (L*W*H) : NA Meter (m) Capacity : 10 Kg Diameter : NA Meter (m) Shape : SQUARE Type : Other QC System : NA Touch Screen : Yes

Send Inquiry

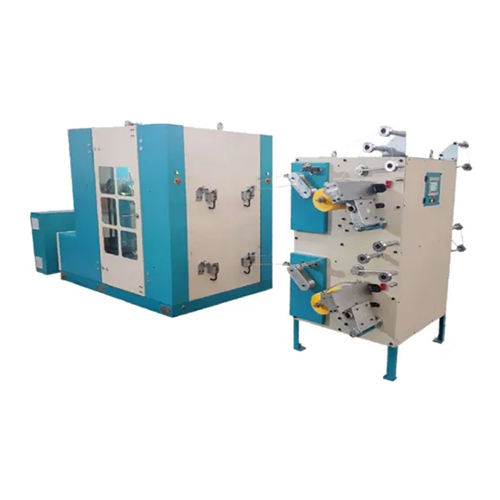

MTP-OP-12 4 Station Twister Machine Price : 10000 INR/Unit Minimum Order Quantity : 1 Feature : High Efficiency, ECO Friendly Computerized : No Control System : Frequency Speed Control General Use : Industrial Surface Treatment : Polishing Material : Stainless Steel Alloy Automatic : Yes Warranty : 5 Years Product Type : Semi Automatic Phase : 3 PHASE Torque : NA Ibsin Voltage : 22 Horsepower (HP) Drawing : 2D Color : GRAY WHITE Tolerance : NA Meter Weight (kg) : 2500 Kilograms (kg) Dimension (L*W*H) : NA Meter (m) Capacity : 25 Kg Diameter : NA Inch (in) Shape : SQUARE Type : Other QC System : NA

Send Inquiry

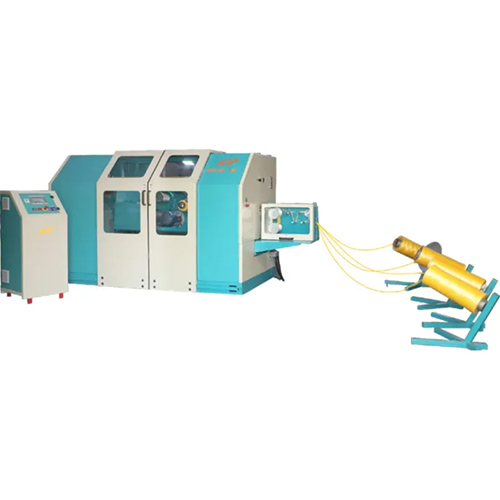

MTP-HP-300 Inflow Twister Minimum Order Quantity : 1 Feature : High Efficiency Computerized : No Control System : Frequency Speed Control General Use : Industrial Surface Treatment : Polishing Material : Stainless Steel Alloy Automatic : Yes Warranty : 5 Years
