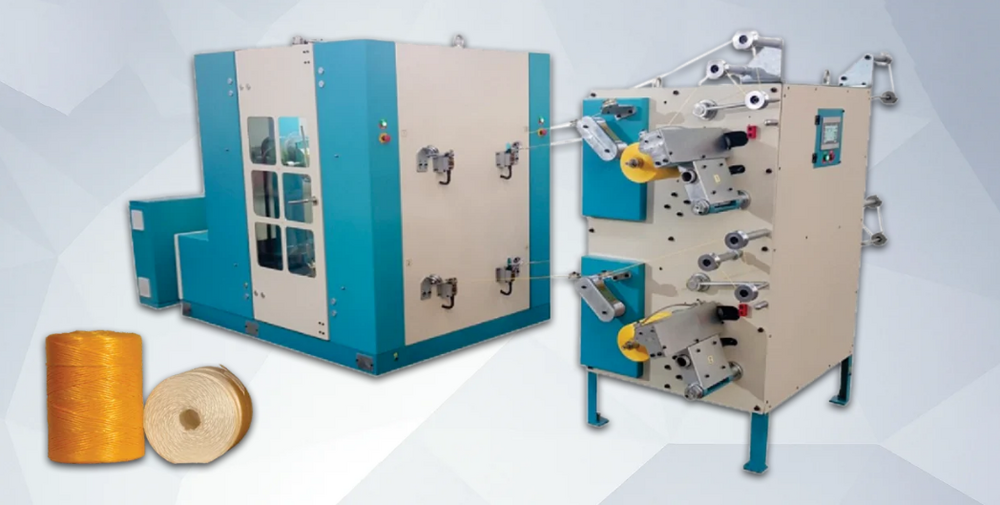

MTP-OP-12 4 Station Twister Machine
10000 INR/Unit
Product Details:
- Phase 3 PHASE
- Torque NA Ibs-in
- Diameter NA Inch (in)
- Shape SQUARE
- Product Type Semi Automatic
- General Use Industrial
- Material Stainless Steel Alloy
- Click to View more
X
MTP-OP-12 4 Station Twister Machine Price And Quantity
- 1 Unit
- 10000 INR/Unit
MTP-OP-12 4 Station Twister Machine Product Specifications
- NA Ibs-in
- 22 Horsepower (HP)
- Polishing
- 3 PHASE
- High Efficiency, ECO Friendly
- 2D
- Yes
- NA
- 2500 Kilograms (kg)
- 5 Years
- GRAY WHITE
- Industrial
- NA Meter
- NA Inch (in)
- No
- Stainless Steel Alloy
- 25 Kg
- NA Meter (m)
- Semi Automatic
- Other
- Frequency Speed Control
- SQUARE
MTP-OP-12 4 Station Twister Machine Trade Information
- Alll India Port
- Cash in Advance (CID), Cheque, Cash Advance (CA), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- 50 Unit Per Month
- 10 Days
- Babble Packing
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
- Government Approved
Product Description
The MTP-OP-12 4 Station Twister is a high-efficiency industrial machine that is designed to twist and bind wires together. Made from stainless steel alloy, this twister is durable and can withstand heavy usage in an industrial setting. The machine is automatic, and its frequency speed control ensures that it operates at an optimal speed. The surface of the machine has been treated with polishing, which gives it a sleek and professional look. This twister is perfect for businesses that require a reliable and efficient machine to twist wires together.
FAQs of MTP-OP-12 4 Station Twister:
Q: What is the material used to make the MTP-OP-12 4 Station Twister?
A: The MTP-OP-12 4 Station Twister is made from stainless steel alloy.Q: Does the MTP-OP-12 4 Station Twister come with a warranty?
A: Yes, this product comes with a 5-year warranty.Q: Is the MTP-OP-12 4 Station Twister computerized?
A: No, this machine is not computerized.Q: Is the MTP-OP-12 4 Station Twister suitable for industrial use?
A: Yes, this twister is designed for general industrial use.Q: What type of control system does the MTP-OP-12 4 Station Twister have?
A: The MTP-OP-12 4 Station Twister has a frequency speed control system.
Technical Specification
| MODEL | MTP/OP-12 |
|---|---|
| DENIER RANGE | 5000 TO 30000 DENIER |
| FLYER SPEED | 2800 RPM MAX |
| TWIST PER MINUT | 5600 TWIST MAX. |
| TWIST DIRECTION | S and Z |
| YARN FLOW | Outside |
| PAY OFF PACKAGE SIZE | DIA.400 MM X TRA. 300 MM (MAX.) |
| PAY OFF PACK_CAPACITY | 25 KGS (APPROX) |
| PACKAGE IN EACH STRAND | 1 |
| TPM RANGE | 20 TO 150 TPM |
| FINAL PACKAGE SIZE (ANY ONE) | 100 X 100 MM 150 X 150 MM 200 X 200 MM 250 X 250 MM |
| SPINDLE | CORELESS PNEUMATIC SPINDLE |
| NO OF LINE | 4 |
| POWER | 17 KW |
Key Features :
User friendly touch screen display
Tpm & Rpm Adjustment By Touch Screen Display
Winding tension adjustment by touch screen display
Pitch adjustment system
Auto stop at yarn breakage
Power transmission by timing belts
Ac frequency drives for all motors
Precision cross winding for final package
Electrically winding tension adjustment
Pneumatic spindle for removal of final package.
Wi-Fi connectivity system for computer.
Optional Features :
With tube Spindle
| DENIER | PROD. (KG/HR.) | RPM (MAX) | TPM |
|---|---|---|---|
| 5,000 | 24.89 kg | 2800 | 50 |
| 10,000 | 49.78 kg | 2800 | 40 |
| 16,000 | 71.20 kg | 2500 | 40 |
| 20,000 | 88.80 kg | 2500 | 35 |
| 25,000 | 97.50 kg | 2500 | 35 |
